Uniden UH5060 UHF Radio: Compact, Remote-Mount UHF for 4WD and Touring Communication

Testing statement: Firebusters has not personally tested this radio. Specifications and operating information are based on current Uniden, retailer and Australian regulatory information.

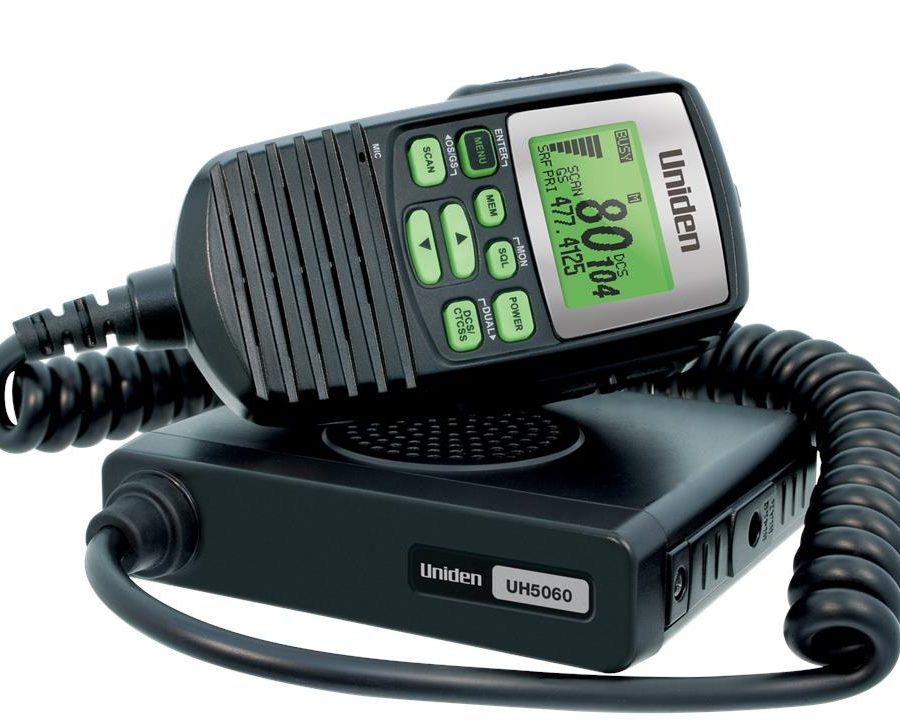

Uniden UH5060: Compact UHF for 4WD and Touring

The Uniden UH5060 is a compact 5W vehicle-mounted UHF CB radio designed for installations where dashboard space is limited.

Instead of placing most controls on a large radio face, the UH5060 uses a remote speaker microphone with an integrated LCD display. This allows the main radio body to be mounted discreetly while the microphone remains within easy reach of the driver.

Verified Specifications

Uniden UH5060 Product Card

Why the Remote Microphone Matters

The UH5060’s main radio body is only about 24mm high.

This gives installers more flexibility to place it:

• under a dashboard
• inside or behind a console
• beneath a seat where appropriate
• in another protected location with suitable ventilation and cable access

The remote speaker microphone provides the display and commonly used controls, so the radio itself does not need to occupy a large visible section of the dashboard.

The supplied 1.5m extension cable gives additional flexibility when positioning the microphone connection.

Remote Speaker Microphone Features

The microphone includes a backlit LCD display and allows remote control of important radio functions.

Features include:

• channel selection
• volume adjustment
• power control
• instant channel programming and recall
• signal-strength and RF-power display
• monitor function

The UH5060 also has a speaker in both the microphone and radio base with synchronised volume.

Open Scan and Group Scan

Open Scan searches the channels stored in scan memory and stops when activity is detected.

Group Scan allows selected channels to be monitored while also watching a priority channel.

These features can be useful when travelling with several vehicles or monitoring commonly used UHF channels.

Dual Watch

Dual Watch allows the UH5060 to monitor an instant priority channel while another selected UHF channel is being used.

This is useful where a convoy has a normal working channel but the driver also wants to monitor a second priority channel.

Australian UHF CB Channel Rules

Australian UHF CB operates under the ACMA Citizen Band Radio Stations Class Licence.

Users do not normally need to apply for an individual CB licence, but the class-licence conditions still apply.

Emergency Channels 5 and 35

UHF channels 5 and 35 are reserved for emergency messages.

They should not be treated as general convoy or social channels.

Channels 22 and 23

Channels 22 and 23 are reserved for telemetry and telecommand.

Voice communication is not permitted on those channels.

Repeater Channels

The current ACMA arrangements use:

• Channels 1–8 and 41–48: repeater outputs
• Channels 31–38 and 71–78: corresponding repeater inputs

When the UH5060 is operated in duplex mode, it can transmit and receive on the paired repeater frequencies.

A repeater can increase practical communication coverage where a suitable repeater is available, but coverage is never guaranteed.

Do Not Rely on UHF as an Emergency-Service Link

Remote travellers should maintain an appropriate emergency-communications plan for their destination.

What Range Can You Expect?

There is no honest single range figure for a vehicle-mounted UHF radio.

Practical range depends on:

• antenna gain
• antenna height and mounting position
• terrain
• hills and valleys
• buildings and vegetation
• the other radio’s antenna
• repeater availability
• electrical interference

A 5W radio does not guarantee a particular distance.

Antenna Is Critical

The standard UH5060 radio package sold by My Generator does not list a vehicle antenna among the included components.

You therefore need a suitable UHF CB antenna unless buying a separate package that specifically includes one.

Antenna choice can have more influence on practical communication than many buyers expect.

Higher-Gain Antennas

A higher-gain antenna can suit flatter and more open country because its radiation pattern is concentrated closer to the horizon.

Lower-Gain Antennas

A lower-gain antenna can be useful in hilly or broken terrain because of its broader radiation pattern.

There is no single antenna gain that is automatically best for every 4WD.

Antenna Mounting

Installation location also matters.

Consider:

• antenna clearance
• roof or bullbar position
• ground-independent versus ground-dependent antenna design
• coax cable routing
• distance from electrical interference sources
• vehicle height
• branches and off-road obstacles

Follow the antenna manufacturer’s requirements rather than assuming any antenna can simply be attached to any bracket.

CTCSS and DCS Codes

The UH5060 supports 38 CTCSS and 104 DCS codes.

These are often called privacy or quiet codes, but they do not make a UHF conversation private.

They simply allow a radio to remain quiet unless it receives the selected tone or code.

Other users on the same channel can still potentially hear the transmission.

Busy Channel Lockout

Busy Channel Lockout can prevent transmission when activity is already detected on the selected channel.

This may help reduce accidental interference with another conversation.

Automatic Volume Stabiliser

The UH5060 includes Uniden’s Automatic Volume Stabiliser, or AVS.

This manages differences in received audio levels to provide more consistent listening volume.

12V Electrical Installation

The radio requires a 12V DC supply.

The supplied pack includes a DC power cord, but installation still needs to be planned carefully.

Check:

• correct polarity
• appropriate fuse protection
• secure wiring
• safe cable routing
• protection from abrasion
• location away from moving pedals or steering components

Do not route the microphone, antenna or power wiring where it can interfere with airbags or vehicle controls.

What Comes in the Standard Package?

The current My Generator UH5060 listing includes:

• UH5060 radio
• remote speaker microphone
• 1.5m extension cable
• microphone hanger
• DC power cord
• mounting bracket
• owner’s manual

Antenna: not listed as included with this standard SKU.

External Speaker

An external speaker jack is provided.

This allows a compatible external speaker to be added if the vehicle environment makes extra audio output useful.

Who Should Consider the UH5060?

The UH5060 may particularly suit:

• 4WD owners
• caravan and camper travellers
• convoy travel
• farm and property vehicles
• utilities with limited dashboard space
• drivers wanting most radio controls on the microphone

Limitations to Understand

• An antenna is required for practical operation.
• Communication distance cannot be guaranteed.
• Terrain can significantly reduce range.
• A UHF radio is not a substitute for a complete remote-area emergency communication plan.
• CTCSS/DCS does not provide secure or private communication.
• Repeater benefits depend on whether a compatible repeater is available in your area.

Buyer Checklist

• Confirm the UH5060 fits your planned mounting location.
• Allow room for the 1.5m microphone extension cable.
• Select an antenna suited to your terrain and mounting position.
• Plan the antenna cable route before installation.
• Check the vehicle’s 12V wiring arrangement.
• Keep cables clear of airbags and controls.
• Understand emergency, telemetry and repeater channel rules.
• Do not assume 5W guarantees a particular communication range.
• Check the current ACMA rules before relying on old channel charts.

Frequently Asked Questions

How powerful is the Uniden UH5060?

It has a maximum published transmit power of 5W.

How many channels does it have?

The UH5060 is an 80-channel narrowband UHF CB radio.

Does it include an antenna?

The standard UH5060 package currently listed by My Generator does not list an antenna as included. Uniden also sells or promotes packages that include antennas, so check the exact SKU being purchased.

Can it operate through repeaters?

Yes. The UH5060 has duplex capability for compatible UHF CB repeaters.

Does it have scan functions?

Yes. It supports Open Scan and Group Scan, as well as Priority Watch and Dual Watch functions.

Can I use Channel 5 for normal convoy communication?

No. UHF channels 5 and 35 are reserved for emergency messages under the current Australian CB arrangements.

Can I talk on Channels 22 and 23?

No. ACMA reserves channels 22 and 23 for telemetry and telecommand rather than voice communication.

Are CTCSS codes private?

No. They can reduce unwanted audio from other users but do not encrypt or secure a conversation.

What warranty does the UH5060 have?

The current My Generator listing specifies a five-year warranty for the UH5060 radio.

Final Assessment

The Uniden UH5060 remains a useful design for vehicles where dashboard space is limited.

Its compact 100 × 95 × 24mm main unit, 5W output, remote LCD speaker microphone, scanning functions and duplex capability provide a strong set of features for 4WD and touring communication.

The most important purchase decision beyond the radio itself is the antenna system. Antenna selection and positioning, terrain and repeater availability all affect practical communication performance.

Firebusters recommendation: consider the UH5060 if you want a compact, remote-mount 5W UHF CB and are prepared to select and install an appropriate external antenna. Treat UHF as one communication tool rather than assuming it provides guaranteed remote-area or emergency coverage.

Research Sources

•
  My Generator – Uniden UH5060

•
  Uniden Australia – Manuals and Product Documentation

•
  ACMA – Citizen Band Radio Stations Class Licence


Radio specifications, product bundles, channel arrangements and regulations can change. Check the latest Uniden documentation, retailer listing and ACMA requirements before purchase or operation.
