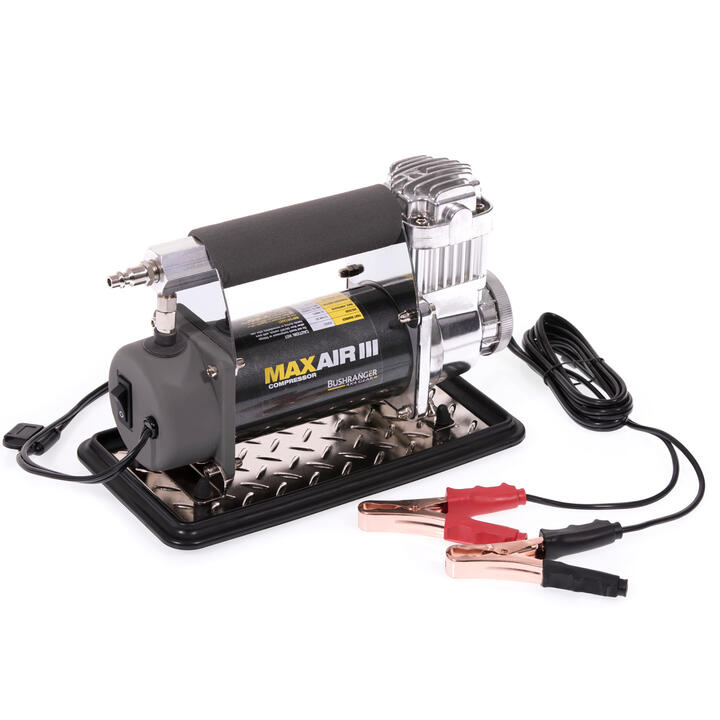

Bushranger Max Air III 55X23 Compressor Guide: 12V 72 L/min & 150 PSI

What comes with it?

Bushranger lists a trigger-style inflation gun with locking lever, built-in deflator button, back-lit digital display, heavy-duty power lead, 40A inline fuse, 2.5 m power cord, 9 m reinforced air hose, removable rubber-mounted base plate, hard-mount kit, three additional nozzles and a carry/storage bag.

The dry-sump design and supplied mounting hardware allow the compressor to be hard mounted, and Bushranger specifically promotes it for an onboard-air system connected to a tank because the pressure switch is already installed.

The current Caravan RV Camping listing gives a lower compressor-only weight of 4.9 kg and a 6.5 kg kit weight, while Bushranger’s own manual and current product page specify 5.3 kg net. For an installation where weight matters, check the delivered unit and mounting hardware rather than relying only on the retailer’s boxed-kit figure.

What the 72 L/min figure really means

The 72 L/min headline is a maximum free-air flow at 0 psi, with the manual specifying the test at 13.8V. Airflow falls as discharge pressure rises, so buyers should not read 72 L/min as the flow available at 100 or 150 psi.

That distinction matters when comparing compressors. Maximum pressure tells you the upper pressure capability, while free-air flow gives a useful indication of how quickly the unit can move air under very low back pressure. Neither figure by itself establishes how long a particular tyre will take to inflate.

For 4WD touring, a better comparison is tyre size, starting pressure, target pressure, ambient temperature, battery voltage and how many tyres you expect to inflate in one session.

Duty cycle: the important operating limit

At 100 psi and 22°C, Bushranger specifies a maximum 33% duty cycle: 15 minutes running followed by 30 minutes off. The official manual also lists 40 minutes of continuous use at 30 psi and 22°C. These are different operating conditions, so one figure should not be substituted for the other.

In practical use, higher ambient temperature, restricted ventilation, high pressure and repeated inflation can increase heat. The compressor includes automatic thermal protection, but that is a protective fallback rather than a reason to ignore the duty-cycle limits.

If the thermal protector stops the unit, Bushranger says to switch the compressor off and allow it to cool for about 15 minutes before resuming use.

Best fit for Australian 4WD and touring use

The Max Air III is well matched to drivers who regularly reduce tyre pressures for sand, gravel or rough-track travel and then need to reinflate before returning to normal road speeds. The long combined reach helps access front and rear tyres without continually relocating the compressor.

Its direct-battery clamps also avoid trying to pull a 30A load through a light accessory socket. For a permanent installation, the included hard-mount hardware and pressure switch make it more adaptable than a simple portable emergency inflator.

Caravan and trailer owners may also value the hose reach, but tyre-pressure requirements should be based on the tyre, vehicle or trailer manufacturer’s recommendations rather than the compressor’s 150 psi capability.

Benefits

• Useful reach: 2.5 m power lead plus 9 m air hose.
• Inflate and deflate: the supplied gun includes an integrated deflator and digital display.
• Portable or hard mounted: supplied base plate and mounting kit support either approach.
• Built-in pressure switch: useful for an onboard-air setup when installed correctly.
• Thermal protection: automatic protection helps protect the compressor if internal temperature rises too far.
• Five-year warranty: listed in Bushranger’s current product information and official manual, subject to the written conditions.

Limitations

• It draws serious current: up to 30A, so correct direct-battery connection, sound terminals, the specified fuse and good cable condition matter.
• It gets hot: Bushranger explicitly warns that compressor parts can cause severe burns during and immediately after use.
• It is not waterproof: the manual says the compressor is moisture and dust resistant, not water or dust proof.
• Airflow is pressure-dependent: 72 L/min is the published maximum at 0 psi rather than the stated flow at tyre pressure.
• Air-tool suitability must be checked: do not assume it can continuously run a pneumatic tool merely because it reaches 150 psi. Compare the tool’s required pressure and air consumption with the compressor’s output and duty limits, and use an appropriate tank/regulator setup where required.

Firebusters operational perspective

For remote travel, a compressor is most useful when it is treated as part of the tyre-management system rather than just an emergency gadget. That means knowing normal road pressure, having a planned reduced pressure for the terrain and load, carrying a suitable tyre-pressure gauge, checking the compressor before departure and allowing enough time to reinflate every tyre before higher-speed travel.

The Max Air III’s 11.5 m combined reach is a practical advantage around a 4WD, caravan or trailer. A hard-mounted installation can also reduce setup time, but wiring, fuse location, cable protection, ventilation, mounting strength and hose routing need to be treated as part of the installation—not as afterthoughts.

For occasional roadside use, a smaller compressor may be cheaper and lighter. For repeated 4WD touring, the Bushranger’s pressure switch, hose reach, inflation gun and hard-mount capability make a stronger case.

Who should choose something else?

A small rechargeable or lower-current portable may suit drivers who only need occasional emergency top-ups and want minimum weight. A larger tank compressor is the better category for sustained workshop air-tool or spray work.

If you are mainly chasing the fastest possible inflation of very large tyres, compare the Max Air III with higher-flow 12V compressors using published flow conditions, current draw, duty cycle, hose reach and thermal limits—not just the largest number on the box.

Frequently asked questions

Verdict

The Bushranger Max Air III 55X23 is a well-equipped 12V compressor for regular 4WD, touring and tyre-management work. The combination of 11.5 m reach, direct battery connection, pressure switch, hard-mount kit, digital inflation gun and five-year warranty gives it a stronger feature set than a basic emergency inflator.

Its main limitations are the 30A electrical demand, heat generation and pressure-dependent duty cycle. Buyers should treat 72 L/min as a maximum free-air figure rather than the published flow at high pressure, follow the official duty limits and make ventilation a priority whenever the vehicle engine is kept running.
